DOBOT Magician Lite

999,00 € 999.0 EUR

999,00 €

Lisää ostoskoriin

Hintoihin lisätään alv 24%

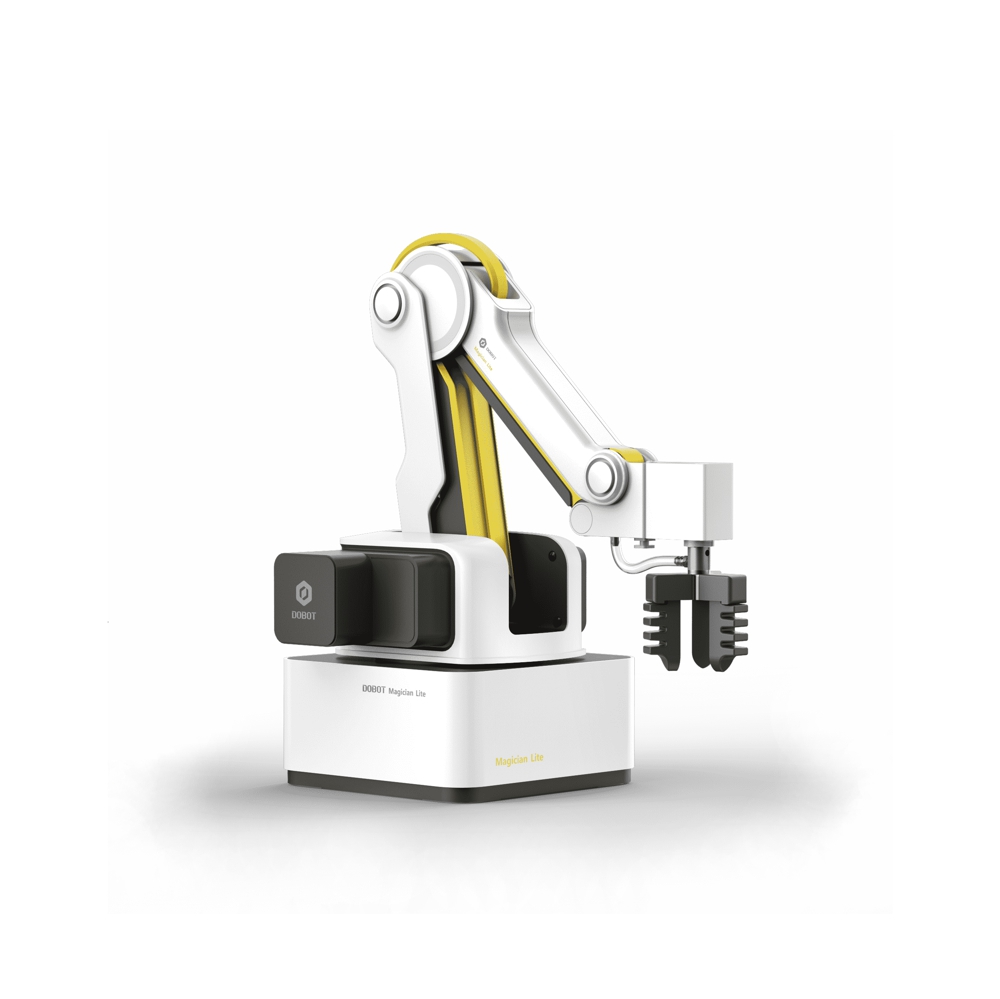

DOBOT Magician Lite

Täydellinen oppimisalusta lapsille, opiskelijoille, opettajille ja kouluttajille.

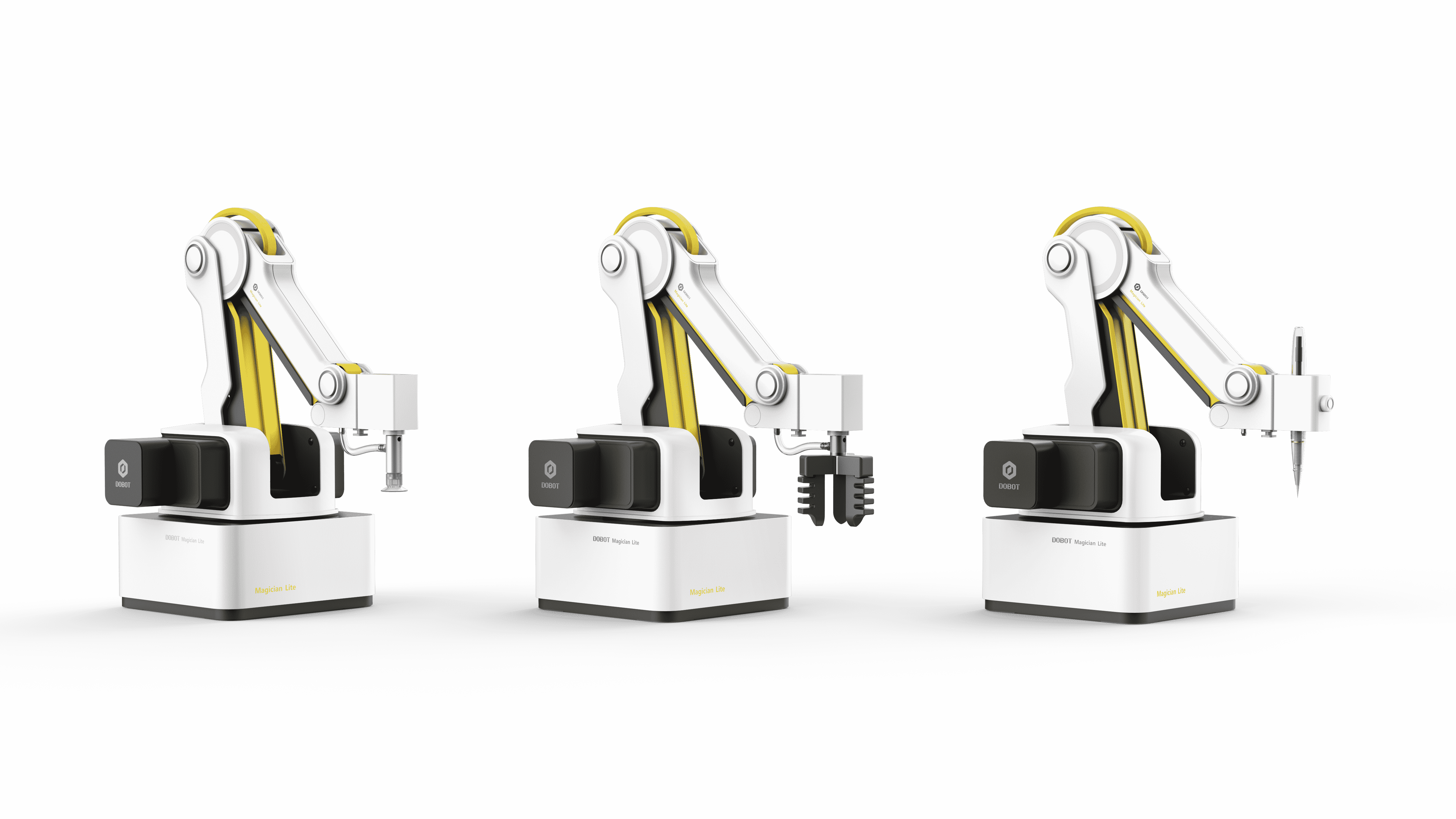

Magician Lite is compact and only weighs 2.4kg, making it portable and easy to build an application scenario. Its repeatability positioning is 0.2mm, payload 0.25kg, and radius range 340mm. It supports a soft gripper, suction cup, pen grasper and other changeable end tools. The robot has collision detection function, making it safe for children to be around.









Odoo CMS - a big picture



DOBOT Magician Lite



Degree of Freedom4



Maximum Load250g



Maximum reach340mm



Repeatability±0.2mm



Voltage100V-240V AC,50/60 Hz



Power Input12V ～ 5A DC



Working Environment-5°C～45°C



Power60W Max



CommunicationUSB Virtual Serial Port / Serial Port



SoftwareDobotStudio/DobotBlock



Weight2.4KG



Rear Arm / Forearm150mm



Base Size146mm×146mm
Magic Box
MCUARM 32-bit Cortex-M4
Main Frequency168 MHz
Voltage100V-240V AC,50/60 Hz
Power Input12V ～ 5A DC
Working Environment-5°C～45°C
Power60W Max
CommunicationUSB Virtual Serial Port/Serial Port/Bluetooth
Programming LanguageMicroPython
SoftwareDobotStudio/DobotBlock
Weight98g
Size95mm×80mm×21.5mm
Axis Motion
Axis 1- Base-135° to +135°
Axis 2- Rear Arm-5° to +80°
Axis 3- Fore Arm-10° to +85°
Axis 4- End Tools-145° to +145°
End Tools
Pen HolderPen Diameter: 8-12 mm
Suction CupBuilt-in air pump drive works under negative pressure, with suction cup diameter of 20mm
Soft GripperBuilt-in air pump drive works under positive and negative pressure, with maximum opening and closing distance of 50mm
Expansion Interface
Power Interface×24PIN, 12V～3A DC
Multi-Functional Communication Interface×210PIN, Serial Communication Interface
I/O Interface×6Green Terminal, 4PIN, 3.3V/5V-IO, 5V 1A-VCC, Multi-Function Multiplexing Interface, User-Defined I/O, AD, PWM Output, I2C, etc
Stepper Motor Interface×2Yellow Terminal, 4PIN, 2-Phase Stepper Motor, 16 Subdivision, 12V 1A
12V Power Interface×2Red Terminal, 2PIN, 12V, 3A Max
